Acknowledgements

• This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.
• The following libraries were also used in the project.
  • JavaFX for the Graphical User Interface (GUI).
  • Jackson for JSON Parsing.
  • JUnit5 for Testing.
  • markdown-javafx-renderer for rendering the markdown.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

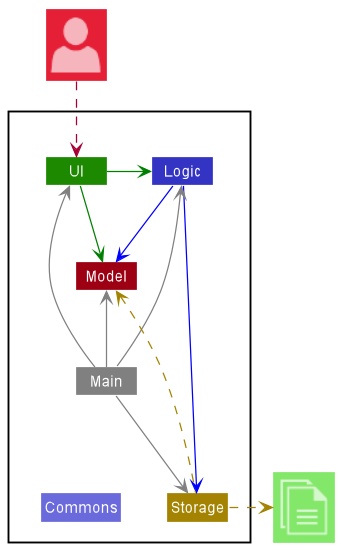

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

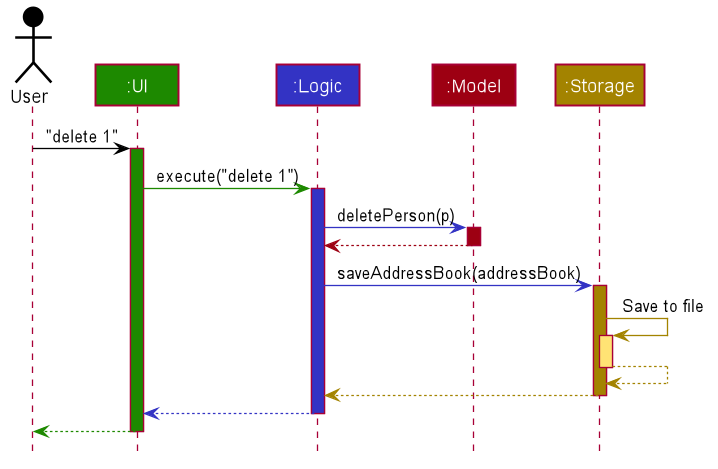

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

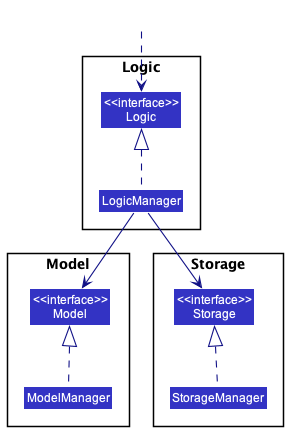

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

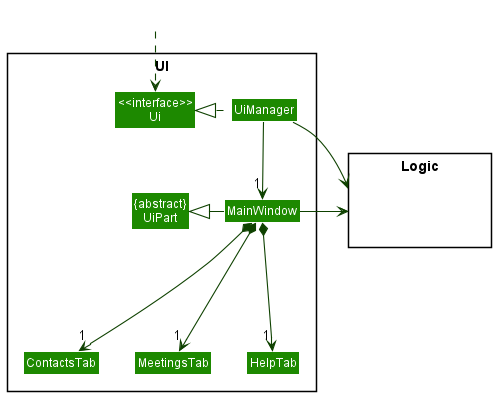

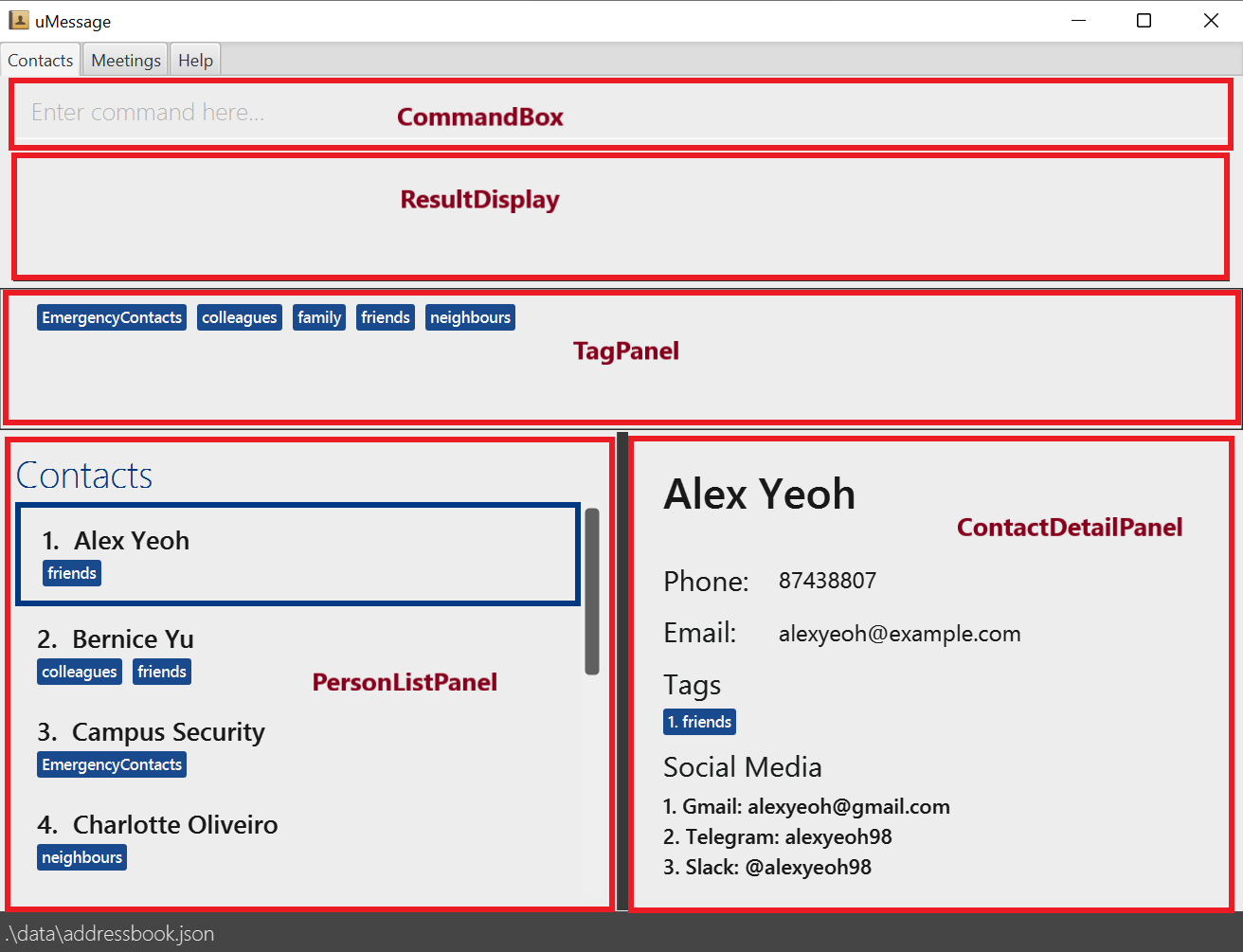

The UI consists of a MainWindow that is made up of three tabs: Contacts, Meetings, and Help.

Each tab has different components. Meetings has a similar structure as Contacts except that there are no MeetingDetailPanel and MeetingDetailCard. Help contains only a MarkdownView.

All components and the MainWindow inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

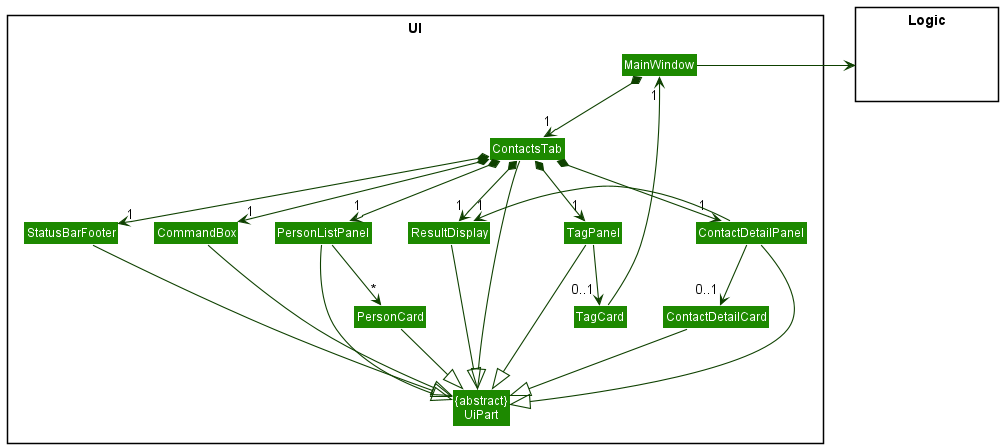

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

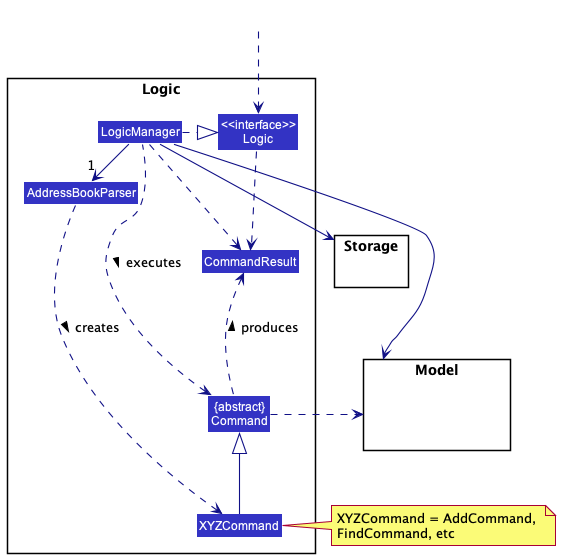

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the AddressBookParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a person).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

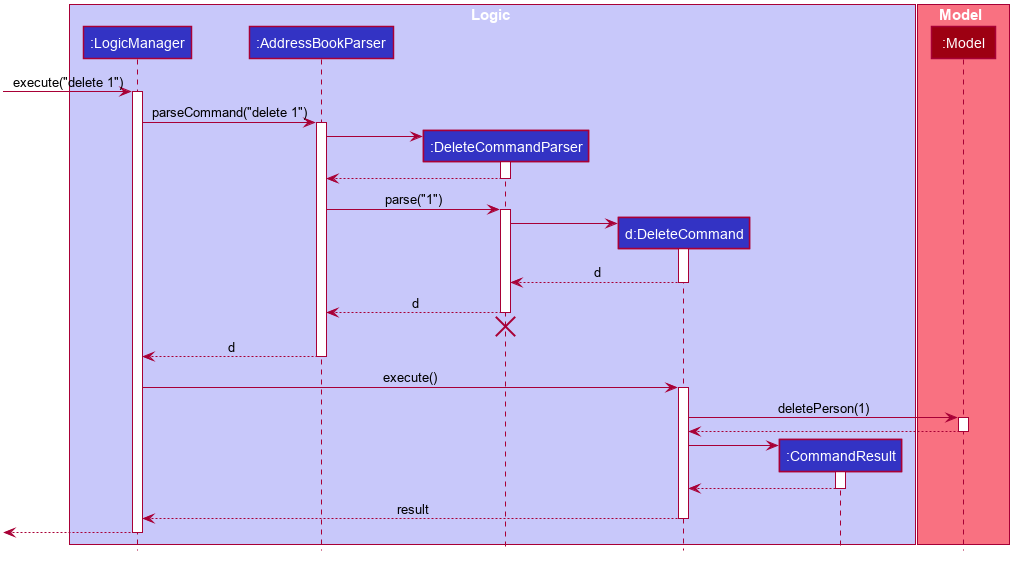

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

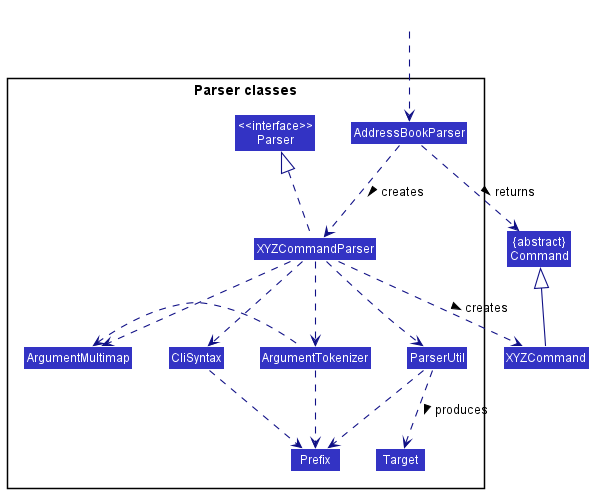

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

The Model component,

• stores the address book data i.e., all Person objects and Meeting objects (which are contained in a UniquePersonList object and UniqueMeetingList object respectively).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered and sorted list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • the same is done for Meeting objects.v
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

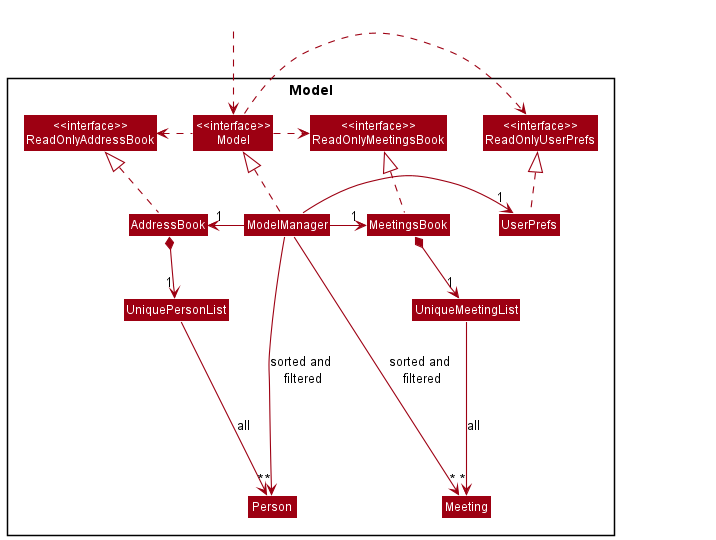

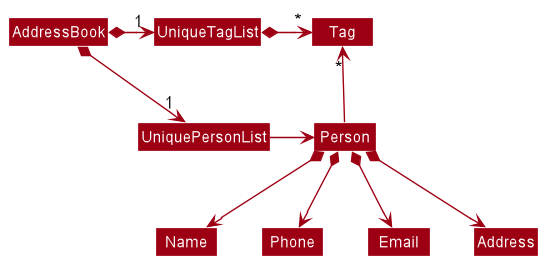

Internally, the Model component also contains other classes that model the attributes of Person and Meeting, as shown:

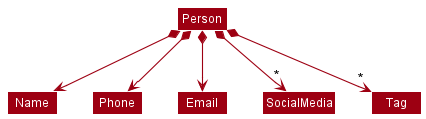

The Person class:

The Meeting class:

Storage component

API : Storage.java

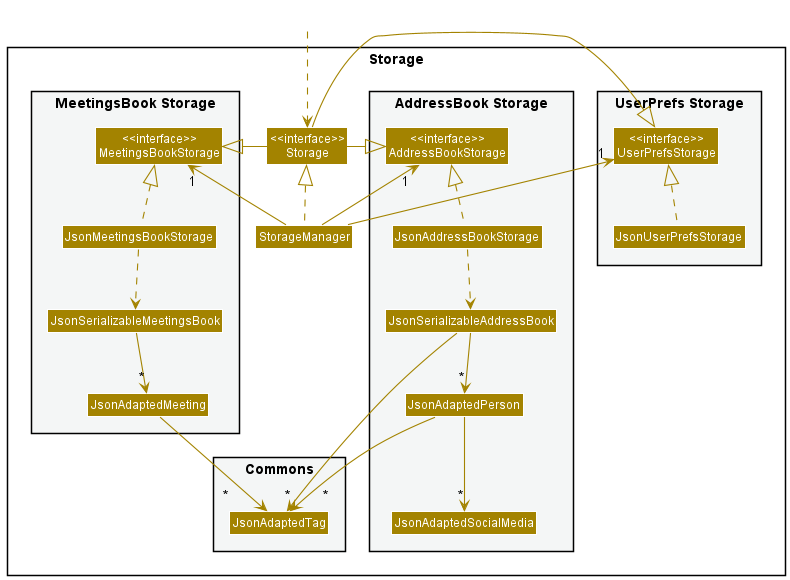

The Storage component,

• can save address book data, meetings book data and user preference data in json format, and read them back into corresponding objects.
• inherits from AddressBookStorage, MeetingsBookStorage and UserPrefStorage, which means it can be treated as any one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

---

Common classes

Classes used by multiple components are in the seedu.addressbook.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented or any features that we have in mind.

Overview
Specifying targets by name or index
Split-panel display
Clickable Tags
Dynamic Command Text Field
Copy Feature
Adding Meetings
[Proposed] Undo/redo feature

---

Specifying targets by name or index

uMessage allows users to perform certain indexed-based operations by specifying the index of the contact/meeting in the application. However, it is noted that users may find referring to the contact/meeting by name to be more natural, and hence uMessage also exposes certain indexed based operations to work with names as well. Some examples of indexed-based operations include:

• Adding/removing new tags from a particular person in the list.
• Deleting a person/meeting from the list.
• Adding/removing new social media information from a person in the list.

The syntax of these commands are typically: <command_word> <INDEX or NAME> <relevant_options>

To reduce code duplication and to differentiate between INDEX and NAME, a Target class is created to handle the parsing of the INDEX/NAME string, and commands that take in a Index/Name instance will now take in a Target instance instead.

At parsing time, before the command instances are instantiated, a Target instance is instantianted with the user input. Internally, the class checks first if the input is a valid Index, failing which, it checks if it is a valid Name. If it fails both checks, then the Target class will throw a ParseException, to be caught by execute.

At this point, note that certain invalid indices are still considered valid names since names are allowed to be alphanumeric. These are the string representations of 0 and any integer greater than MAX_INT.

To prevent prematurely rejecting these strings as invalid indices, the validation for these input class will be deferred to command execution time, where the string is checked against the existing list of persons/meetings. If no person/meeting exists with the same name, then these set of inputs are treated as an invalid index and a CommandException is thrown accordingly.

---

Split-panel display

uMessage has a split view design for the contacts tab, as seen in the diagram above. On the top, we have a ResultDisplay, which displays the result of various commands and actions performed on the application. On the left, there is a UI component PersonListPanel where users can choose and select from the list of contacts available. On the right, users can see expanded, detailed information about the currently selected user, in a UI component called ContactDetailPanel and this panel changes based on who is currently selected on the left.

Internally, ContactDetailPanel observes a SimpleObjectProperty<Person> currentlySelectedPerson observable in the ModelManager object, and will update to display the information of the new Person whenever the value in the observable changes.

There are only a few situations that can update the observable:

1. The user enters a view INDEX command through the command box.
2. The user changes what they select on the PersonListPanel on the left.

In the first case, the view command will retrieve the Person at the specified INDEX of the ListView, and then set this Person object as the new value for SimpleObjectProperty<Person>, and also update the ResultDisplay as well.

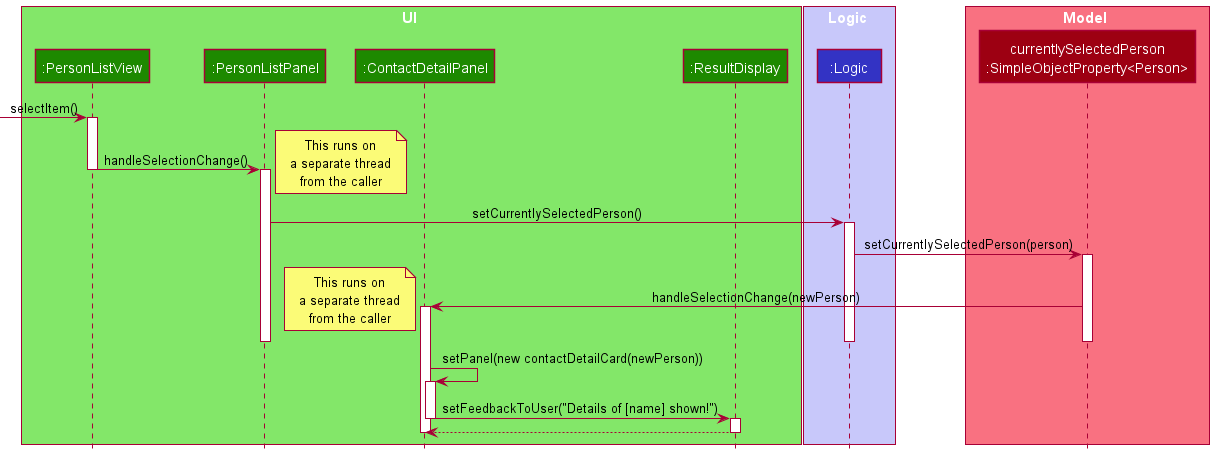

In the second case, the ListView within PersonListPanel has an inbuilt Selection API provided by the javafx library itself. This exposes an observable which contains the currently selected item of the ListView. PersonListPanel listens for changes to this value, and updates the SimpleObjectProperty<Person> in ModelManager whenever the selector on the ListView changes.

When the user clicks a contact in the list, the detailed information will be displayed in the ContactDetailPanel, and the message in the ResultDisplay will be updated.

The ContactDetailPanel is responsible for informing the user through the corresponding ResultDisplay when the details have been shown successfully.

---

Clickable tags

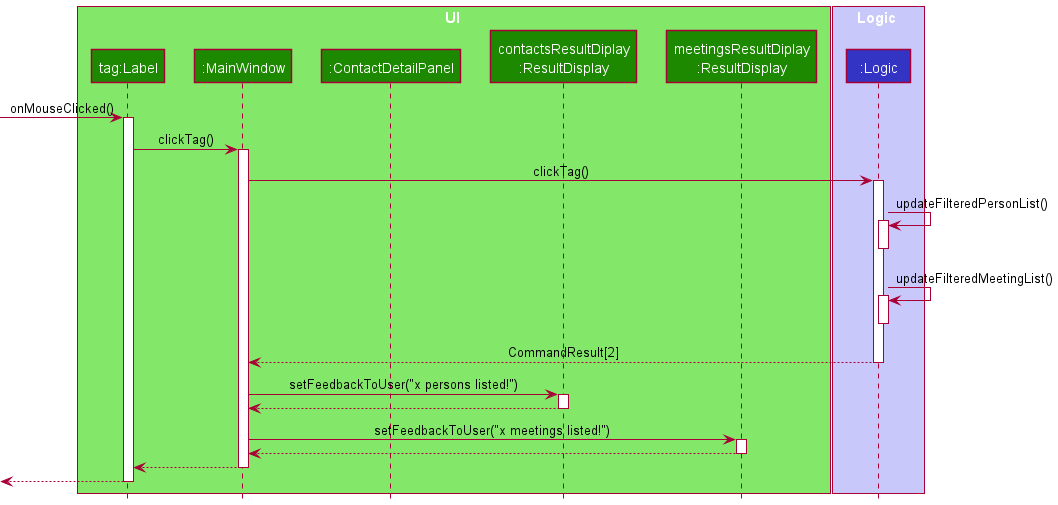

When the user clicks a tag in the TagPanel, both the contact list and the meeting list will be filtered: only items that has the tag will be displayed. The number of matching items will then be updated in both contactsResultDisplay and meetingsResultDisplay.

This implementation helps the user to filter both contacts and meetings by tag easily.

Since the effect of clicking a tag is global, each tag (displayed using a Label) will call the clickTag method in MainWindow. The clickTag method is then responsible for calling Logic to update the filtered list and updating both ResultDisplays when filtering is done.

---

Dynamic Command Text Field

Implementation

This implementation involves enabling the CommandTextField to read input as it is typed in the Command Line Interface (CLI). In the CommandBox.java, a listener function named handleDynamicInput(), reads the user input at each deletion or addition of the command in the CLI and calls MainWindow#executeCommand. It passes the command inputted by the user with the string “dynamic” concatted to the front, and a reference of itself (a CommandBox object).

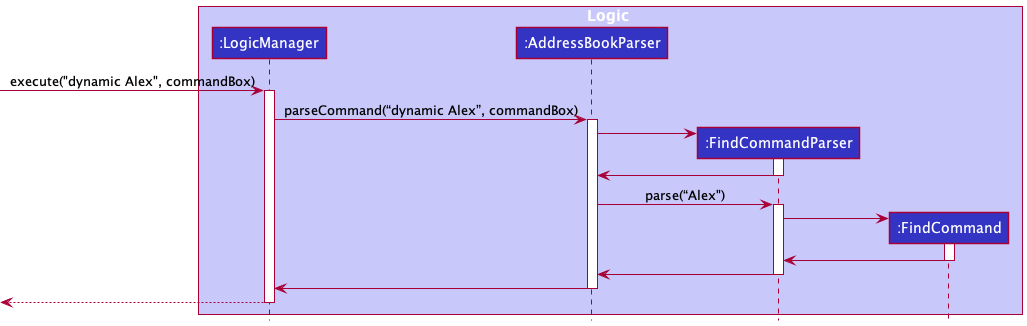

The user input and instance of commandBox object is then passed to LogicManager#execute and subsequently AddressBookParser#parseCommand and FindCommandParser#parse(arguments).

The above is assuming that the user inputs a string not included in the list of commands: “add”, “delete”, “list”, “find”, “view”, “edit”, “copy”, “clear”, “exit”, “help”.

Alternatives considered

• Alternative 1: Continue to enable logging even during dynamic searching
  • Pros: No changes needed.
  • Cons: May have performance issues in terms of responsiveness.

---

Copy feature

Implementation

The copy mechanism is facilitated by ClipboardManager. It implements the following operation of copying the Person to the clipboard.

These operations are exposed in the Model interface as Model#copyPerson().

Given below is an example usage scenario and how the copy mechanism behaves.

Step 1. The user launches the application.

Step 2. The user call the inputs copy [PERSON]

Step 3. The CopyCommandParser implements Parser<CopyCommand> parses the command and initalizes the CopyCommand with the name of the [PERSON]

Step 4. Finally the copy command is executed and the ClipboardManager#copy is called from the model.

Design Considerations:

Aspect: Ease of copying data from uMessage:

• Alternative 1 (current choice): Saves the entire contact book.
  • Pros: Easy to implement.
  • Cons: User may have to manually delete unwanted information from the contact.
• Alternative 2: Individual copy command to copy individual information stored in the contact
  • Pros: Will be easier for the user to copy information needed.
  • Cons: There must be an additional input from the user after the copy command with the field name.

{more aspects and alternatives to be added}

---

Adding Meetings

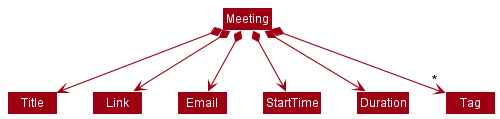

In our meetings tab, users can store information about meetings. Meetings consist of the following information:

1. Meeting Title
2. Meeting Link
3. Start Time
4. Duration

Implementation

The Meeting.java class contains a reference to five separate classes, each of which encapsulate the information about Meetings mentioned above. The Title.java class and Duration.java class stores the title and duration of a meeting respectively. The Title.java class simply stores the title as a String while the Duration class stores the duration as an int. The remaining two classes will be explained in more detail.

Firstly, the Link class. In Link.java, a link/url for the meeting is stored as a String. Following the international convention, the Link Validation Regex was structured such that the domain name can contain the English alphabet A-Z (not case-sensitive), the digits 0-9 and hyphens. However, hyphens cannot be added to the start or the end of a domain name. In addition, users will be required to add the protocol, http:// or https:// at the front of the link.

Secondly, the StartTime.java class. StartTime represents the starting date and time of a meeting. The time and date is contained within the Java Class LocalDateTime. When a meeting is created with the relevant start time, a StartTime object will be created inside the AddMeetingCommandParser#parse regardless of whether the start time given is in the past, present or future. Only when the AddMeetingCommand#execute method is executed, then the method StartTime#isInThePast will be invoked to check if the start/time given by the user is in the past or not by comparing it with LocalDateTime#now. If the start/time is in the past, a CommandException error will be thrown.

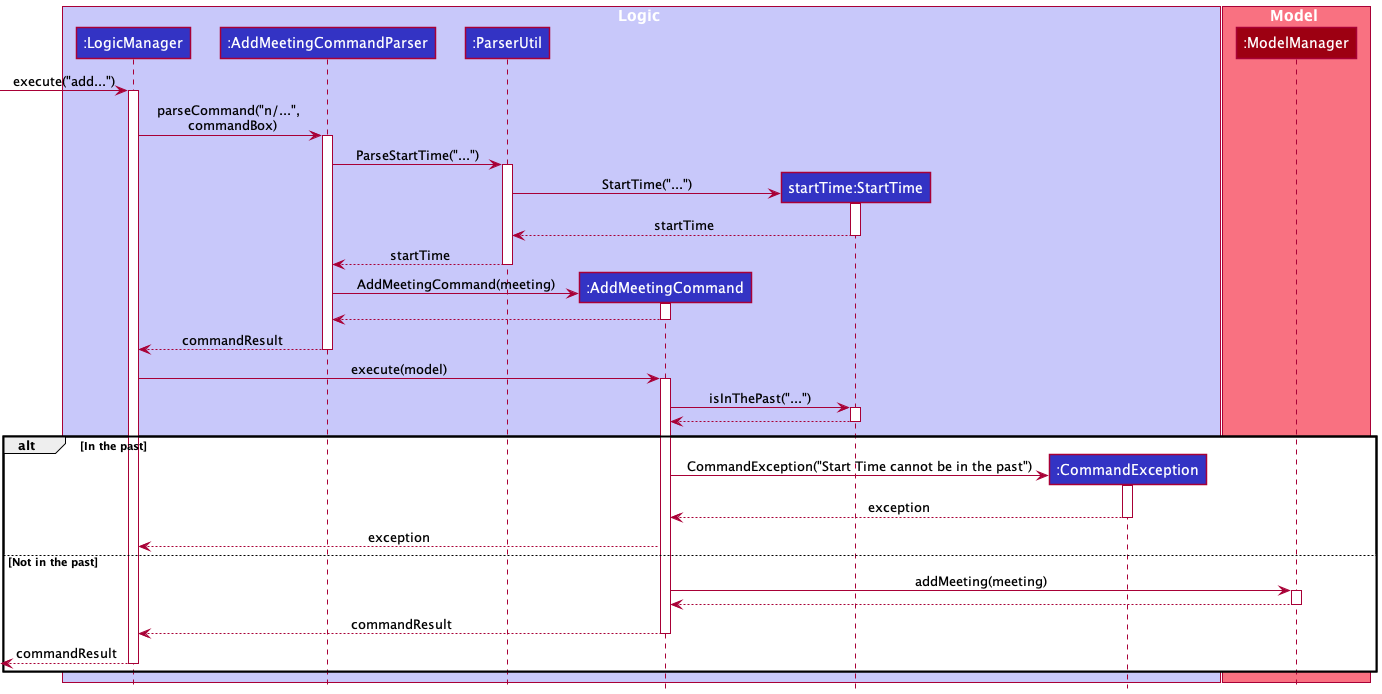

Below is a diagram of the sequence of actions that occur when the user inputs a start time in the past and a start time not in the past:

---

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedAddressBook#commit() — Saves the current address book state in its history.
• VersionedAddressBook#undo() — Restores the previous address book state from its history.
• VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

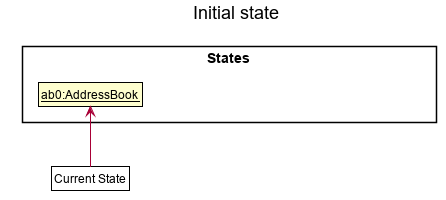

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

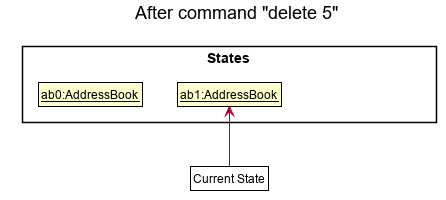

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

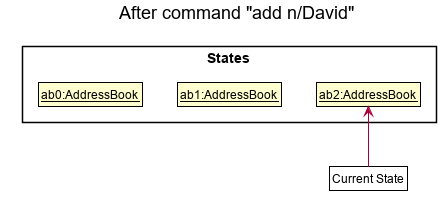

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

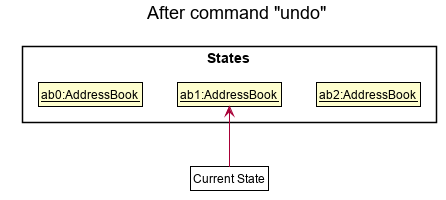

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

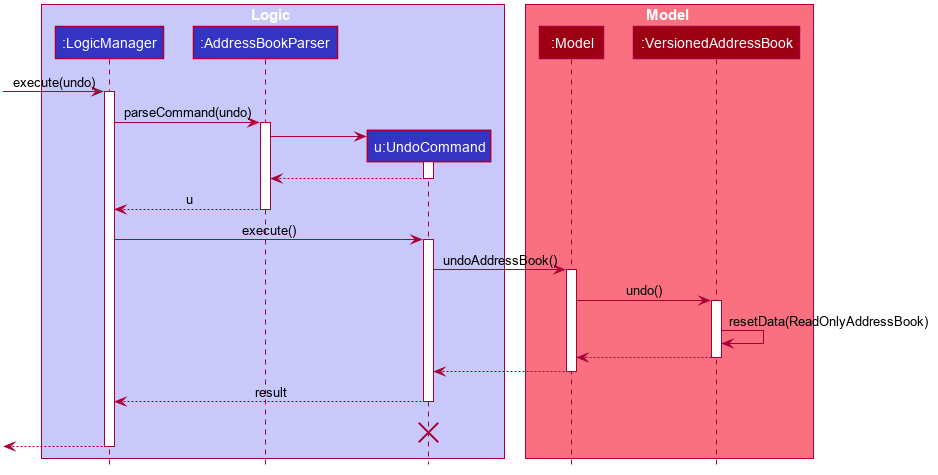

The following sequence diagram shows how the undo operation works:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

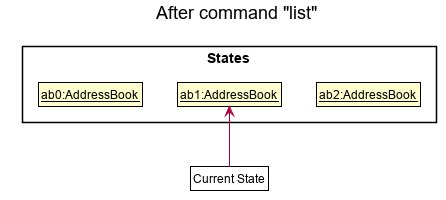

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

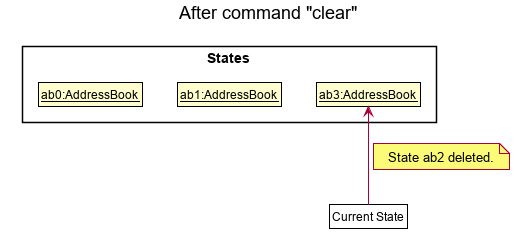

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

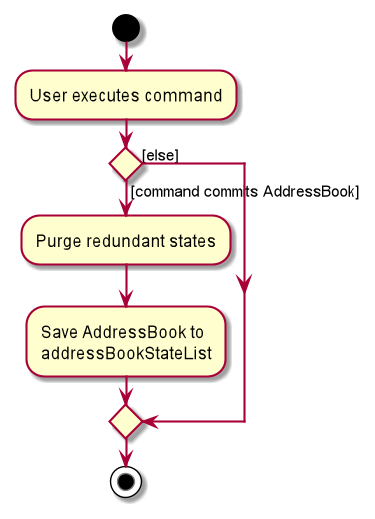

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire contact book.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile: A university student who:

• has a need to organise a significant number of contacts and meetings across various social media platforms
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: organise contacts and meetings across various social media platforms so that they can be retrieved more conveniently when needed

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	student with many contacts	manage my contacts easily
* * *	new user	find help on how to use the app	be more proficient in using the app
* * *	new user struggling to keep track of everybody’s communication channels	save people’s communication channels	find their contacts easily
* * *	new user	access the user guide	learn how to use the app better
* * *	new user	view a list of available commands	know which command to use for what I want to do
* * *	user	delete specific contacts	remove irrelevant information to me
* * *	user	delete all my contacts in one go
* * *	new user	view my contacts when I open the app	see only relevant information
* * *	new user	add new people and their communication handles to my contacts
* * *	user	add new communication handles to existing contacts
* * *	university student using a lot of communication channels	organise my contacts’ communication channels neatly	see my contacts displayed neatly through GUI
* * *	user who likes tidy interfaces	organise my contacts neatly
* * *	university student taking a lot of modules every semester	organise my module teammates into their respective labels
* * *	user	look up the list of communication channels for any contact	see what options I have to communicate with that individual
* * *	user	update a specific handle/contact
* * *	user	clear all my contacts
* * *	user	list all my contacts
* * *	student with many CCAs	tag contacts with CCA tags	manage my contacts better
* * *	student taking many modules a semester	tag contacts with modules tags	manage my contacts better
* * *	user	remove tags which I think are not relevant to me anymore
* * *	user	search ny names or tags
* * *	user who prefers typing	use a CLi interface over GUI
* * *	user	separate academic and non-academic contacts
* *	student with many meetings	add my meetings to my contacts	manage my meetings easily
* *	user	list most recently searched contacts
* *	university student	find university-specific helpline contacts	contact specific helplines when I need help
* *	new university student	find specific university department’s contacts	contact specific departments related to specific queries/problems
* *	user	add additional information about any contact as extra details
* *	new user	open the contacts that are saved	see the communication channels I have with that person
* *	user who has to keep track of a lot of meetings	save meetings so that I can keep track of them
* *	university student	find a link to an online class
*	student who likes to be visually stimulated	set my preferred themes of the app
*	colour-blind user	view the app in colour blind mode
*	student who prefers multi-tasking	resize the app window without limiting functionalities
*	user	export consolidated contacts to other users

Use cases

(For all use cases below, the System is the AddressBook and the Actor is the user, unless specified otherwise)

Precondition - User has started up the uMessage application

---

Use case 1: Add a contact

MSS

1. User types in the command to add a person into the address book
2. uMessage adds the person into the list of contacts and updates it to the user

Use case ends

Extensions

• 1a. Incorrect syntax is used
  • 1a1. uMessage displays an error message
  • 1a2. Use case resumes at step 1

---

Use case 2: Delete a contact

MSS

1. User types in the command to delete a contact from the list
2. uMessage removes the specified contact in the list and displays the updated list to the user

Use case ends

Extensions

• 1a. User enters an invalid syntax / a target index greater than the size of the list / a non-existing target name
  • 1a1. uMessage shows an error
  • 1a2. Use case resumes at step 1

---

Use case 3: Find Contact

MSS

1. User types keyword(s) in the searchbar
2. uMessage updates the contact list to display matching contacts

Use case ends

Extensions

• 1a. The first word the user types is a command word
  • 1a1. uMessage displays the full list
• 1b. User deletes all keywords
  • 1b1. uMessage displays the full list
  • 1b2. Use case resumes at step 1

---

Use case 4: Copies a contact

MSS

1. User types in the command to copy a contact from the list

2. uMessage copies the specified contact to the clipboard in the list and displays the same in the resultDisplay.

Extensions

• 1a. User does not enter a case-sensitive contact within the contact list.
  • 1a1. uMessage shows an error

Use case resumes at step 1

• 1b. User enters an index
  • 1b1. uMessage shows an error

Use case resumes at step 1

---

Use case 5: View Contact

MSS

1. User types command to view a specific contact from the contact list
2. uMessage displays the specific contact and all of its details in the RHS Window.

Use case ends

Extensions

• 1a. Incorrect syntax is used
  • 1a1. uMessage displays an error message
  • 1a2. Use case resumes at step 1

---

Use case 6 : Add a meeting

MSS

1. User types in the command to add a person into the meetings book
2. uMessage adds the meeting into the list of meetings and updates it to the user

Use case ends

Extensions

• 1a. Incorrect syntax is used
  • 1a1. uMessage displays an error message
  • 1a2. Use case resumes at step 1

---

Use case 7: Delete a meeting

MSS

1. User types in the command to delete a meeting from the list
2. uMessage removes the specified meeting in the list and displays the updated list to the user

Use case ends

Extensions

• 1a. User enters an invalid syntax / a target index greater than the size of the list / a non-existing target name
  • 1a1. uMessage shows an error
  • 1a2. Use case resumes at step 1

---

Use case 8: Find a meeting

MSS

1. User types keyword(s) in the searchbar
2. uMessage updates the meeting list to display matching meetings

Use case ends

Extensions

• 1a. The first word the user types is a command word
  • 1a1. uMessage displays the full list
• 1b. User deletes all keywords
  • 1b1. uMessage displays the full list
  • 1b2. Use case resumes at step 1

---

Use case 9: Edit a meeting

MSS

1. User types in the command to edit a meeting from the list
2. uMessage edits the specified meeting in the list and displays the updated meeting and meeting list to the user

Use case ends

Extensions

• 1a. User enters an invalid syntax/ a target index greater than size of the list / a non-existing target name
  • 1a1. uMessage shows an error
  • 1a2. Use case resumes at step 1

---

Non-Functional Requirements

Technical:

1. System should work on any mainstream Operating System, provided it has Java 11 or above installed
2. System should be fully functional without an internet connection

Quality:

1. A non-experienced user should be able to navigate and use the application as intended
2. Users should be able to accomplish most tasks faster with the CLI as compared to using the mouse
3. Able to run smoothly on low-end systems

Constraints:

1. User has to manually type out the command using the Command Line Interface instead of using a mouse
2. uMessage is able to hold up to {to be decided} contacts before experiencing a drop in performance

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Private contact detail: A contact detail that is not meant to be shared with others
• Command Line Interface (CLI): A user interface whereby users interact with the program with lines of text.
• Graphical User Interface (GUI): A user interface that allows users to interact with the program with graphical components, like clickable menus.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Saving data

1. Dealing with missing/corrupted data files

   1. To simulate a missing file, delete the data folder, or some of the .json files within it. This data folder is located in the same directory where the application jar is placed.

   Upon launch, the application will generate a new data folder with initial application data.

   1. To simulate a corrupted file, edit some of the text data found within the .json files. This application will determine if the corrupted json file is still parseable, and handle accordingly. If the data files are determined to be corrupted, the application will wipe the data files, causing it to start from a clean slate upon saving.
